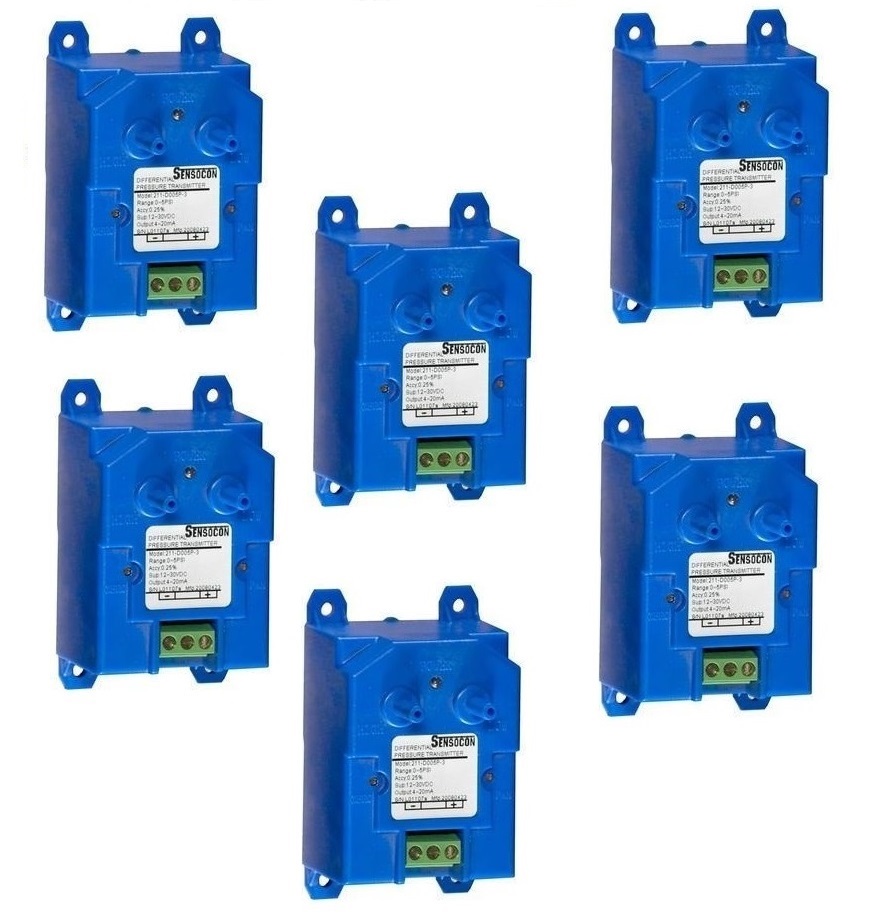

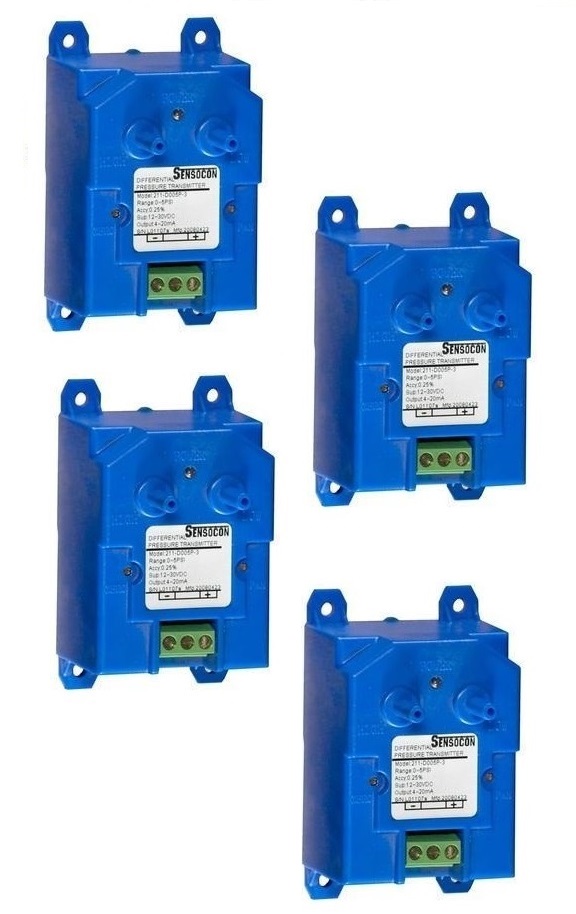

Sensocon USA SERIES 211-D003K-3 Differential Pressure Transmitter

• Model – 211-D003K-3
• Pressure Range – 0-3 Kpa
• Accuracy – 0.25%
• Compact Design
• 0.25% Accuracy
• LED Power Indication
• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

• Maximum Pressure:
• Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
• Media Compatibility:
• Air and compatible noncombustible, non-corrosive gasses
• Accuracy:
• Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
• Temperature Ranges:
• Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
• Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
• Stability: +/- 0.25% FS/year
• Output Signal: 4-20 mA, 2 wire or 0-10V
• Loop Resistance: 250 Ω @ 24 VDC
• Power Supply: 12-30 VDC
• Housing Material: ABS Plastic
• Electrical Connections: screw terminals
• Process Connection: Push on connection for 3/16″ I.D. tubing
• Agency Approvals: CE
•

• Model – 211-D002K-3
• Pressure Range – 0-2 Kpa
• Accuracy – 0.25%
• Compact Design
• 0.25% Accuracy
• LED Power Indication
• 4 – 20 mA or 0 – 10 V output

• Maximum Pressure:
• Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
• Media Compatibility:
• Air and compatible noncombustible, non-corrosive gasses
• Accuracy:
• Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
• Temperature Ranges:
• Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
• Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
• Stability: +/- 0.25% FS/year
• Output Signal: 4-20 mA, 2 wire or 0-10V
• Loop Resistance: 250 Ω @ 24 VDC
• Power Supply: 12-30 VDC
• Housing Material: ABS Plastic
• Electrical Connections: screw terminals
• Process Connection: Push on connection for 3/16″ I.D. tubing
• Agency Approvals: CE
•

Model -  211-D001I-1

Pressure Range - 0-1"

Accuracy - 1%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4" w.c. (1 kPa) 1.0% Ranges ≥ 5" w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16" I.D. tubing

Agency Approvals: CE

Sensocon USA SERIES 211-D004I-1 Differential Pressure Transmitter

Model – 211-D004I-1

Pressure Range – 0-4″

Accuracy – 1%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

Model –  211-D006I-3

Pressure Range – 0-6″

Accuracy – 0.25%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

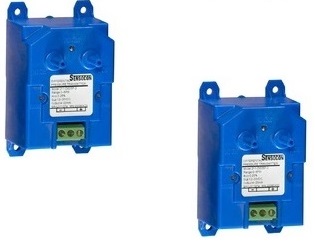

Sensocon USA SERIES 211-D010I-3 Differential Pressure Transmitter

Model –  211-D010I-3

Pressure Range – 0-10″

Accuracy – 0.25%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

Model –  211-D005P-3

Pressure Range – 0-5 PSI

Accuracy – 0.25%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

Model – 211-D010P-3

Pressure Range – 0-10 PSI

Accuracy – 0.25%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

Model – 211-D015P-3

Pressure Range – 0-15 PSI

Accuracy – 0.25%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

Model –  211-250A-1

Pressure Range – 0-250 PA

Accuracy – 1%

• Compact Design

• 0.25% Accuracy

• LED Power Indication

• 4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasses

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminals

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

Model –  211-500A-1

Pressure Range – 0-500 PA

Accuracy – 1%

Compact Design

0.25% Accuracy

LED Power Indication

4 – 20 mA or 0 – 10 V output

The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.

SPECIFICATIONS

Maximum Pressure:

Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max

Media Compatibility:

Air and compatible noncombustible, non-corrosive gasse

Accuracy:

Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%

Temperature Ranges:

Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)

Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)

Stability: +/- 0.25% FS/year

Output Signal: 4-20 mA, 2 wire or 0-10V

Loop Resistance: 250 Ω @ 24 VDC

Power Supply: 12-30 VDC

Housing Material: ABS Plastic

Electrical Connections: screw terminal

Process Connection: Push on connection for 3/16″ I.D. tubing

Agency Approvals: CE

• Model –  211-D100K-3
• Pressure Range – 0-100 Kpa
• Accuracy – 0.25%
• Compact Design
• 0.25% Accuracy
• LED Power Indication
• 4 – 20 mA or 0 – 10 V output

• Maximum Pressure:
• Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
• Media Compatibility:
• Air and compatible non combustible, non-corrosive gasses
• Accuracy:
• Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
• Temperature Ranges:
• Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
• Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
• Stability: +/- 0.25% FS/year
• Output Signal: 4-20 mA, 2 wire or 0-10V
• Loop Resistance: 250 Ω @ 24 VDC
• Power Supply: 12-30 VDC
• Housing Material: ABS Plastic
• Electrical Connections: screw terminals
• Process Connection: Push on connection for 3/16″ I.D. tubing
• Agency Approvals: CE
•

• Model – 211-D005K-3
• Pressure Range – 0-5 Kpa
• Accuracy – 0.25%
• Compact Design
• 0.25% Accuracy
• LED Power Indication
• 4 – 20 mA or 0 – 10 V output

• Maximum Pressure:
• Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
• Media Compatibility:
• Air and compatible non combustible, non-corrosive gasses
• Accuracy:
• Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
• Temperature Ranges:
• Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
• Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
• Stability: +/- 0.25% FS/year
• Output Signal: 4-20 mA, 2 wire or 0-10V
• Loop Resistance: 250 Ω @ 24 VDC
• Power Supply: 12-30 VDC
• Housing Material: ABS Plastic
• Electrical Connections: screw terminals
• Process Connection: Push on connection for 3/16″ I.D. tubing
• Agency Approvals: CE
•

• Model – 211-D0010K-3
• Pressure Range – 0-10 Kpa
• Accuracy – 0.25%
• Compact Design
• 0.25% Accuracy
• LED Power Indication
• 4 – 20 mA or 0 – 10 V output

• Maximum Pressure:
• Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
• Media Compatibility:
• Air and compatible non combustible, non-corrosive gasses
• Accuracy:
• Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
• Temperature Ranges:
• Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
• Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
• Stability: +/- 0.25% FS/year
• Output Signal: 4-20 mA, 2 wire or 0-10V
• Loop Resistance: 250 Ω @ 24 VDC
• Power Supply: 12-30 VDC
• Housing Material: ABS Plastic
• Electrical Connections: screw terminals
• Process Connection: Push on connection for 3/16″ I.D. tubing
• Agency Approvals: CE
•

• Model – 211-D0050K-3
• Pressure Range – 0-50 Kpa
• Accuracy – 0.25%
• Compact Design
• 0.25% Accuracy
• LED Power Indication
• 4 – 20 mA or 0 – 10 V output

• Maximum Pressure:
• Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
• Media Compatibility:
• Air and compatible non combustible, non-corrosive gasses
• Accuracy:
• Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
• Temperature Ranges:
• Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
• Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
• Stability: +/- 0.25% FS/year
• Output Signal: 4-20 mA, 2 wire or 0-10V
• Loop Resistance: 250 Ω @ 24 VDC
• Power Supply: 12-30 VDC
• Housing Material: ABS Plastic
• Electrical Connections: screw terminals
• Process Connection: Push on connection for 3/16″ I.D. tubing
• Agency Approvals: CE
•

*For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.
