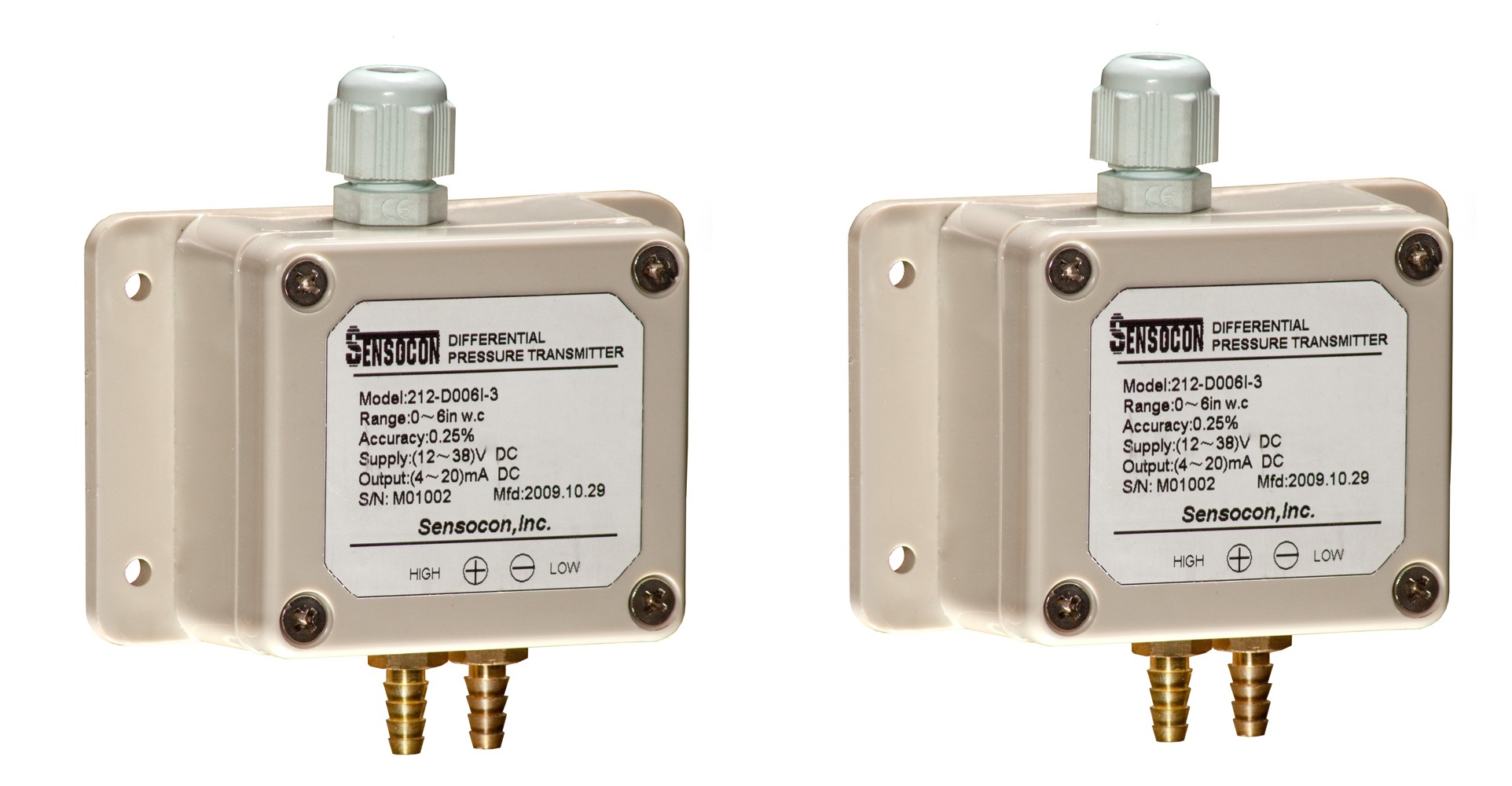

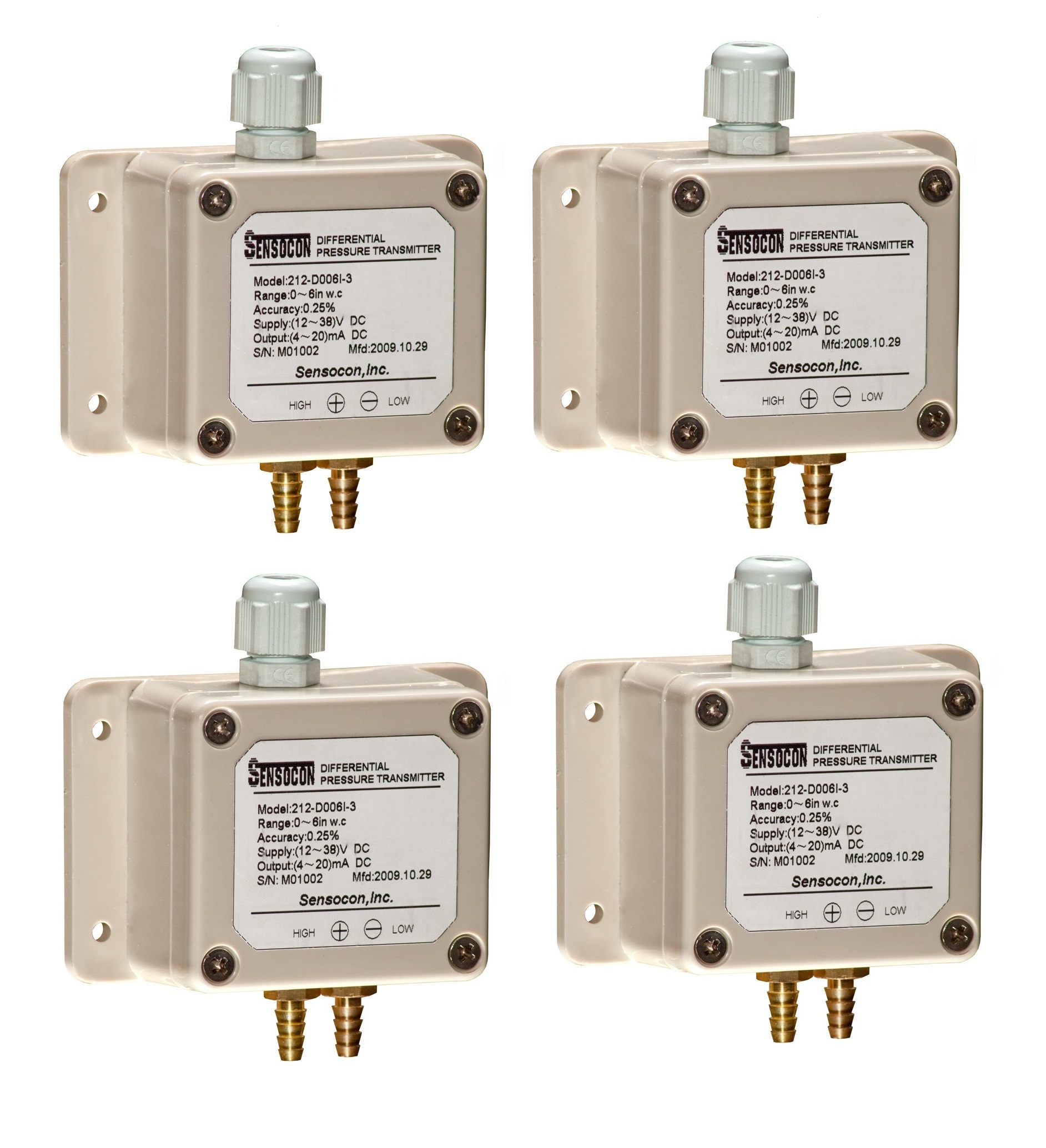

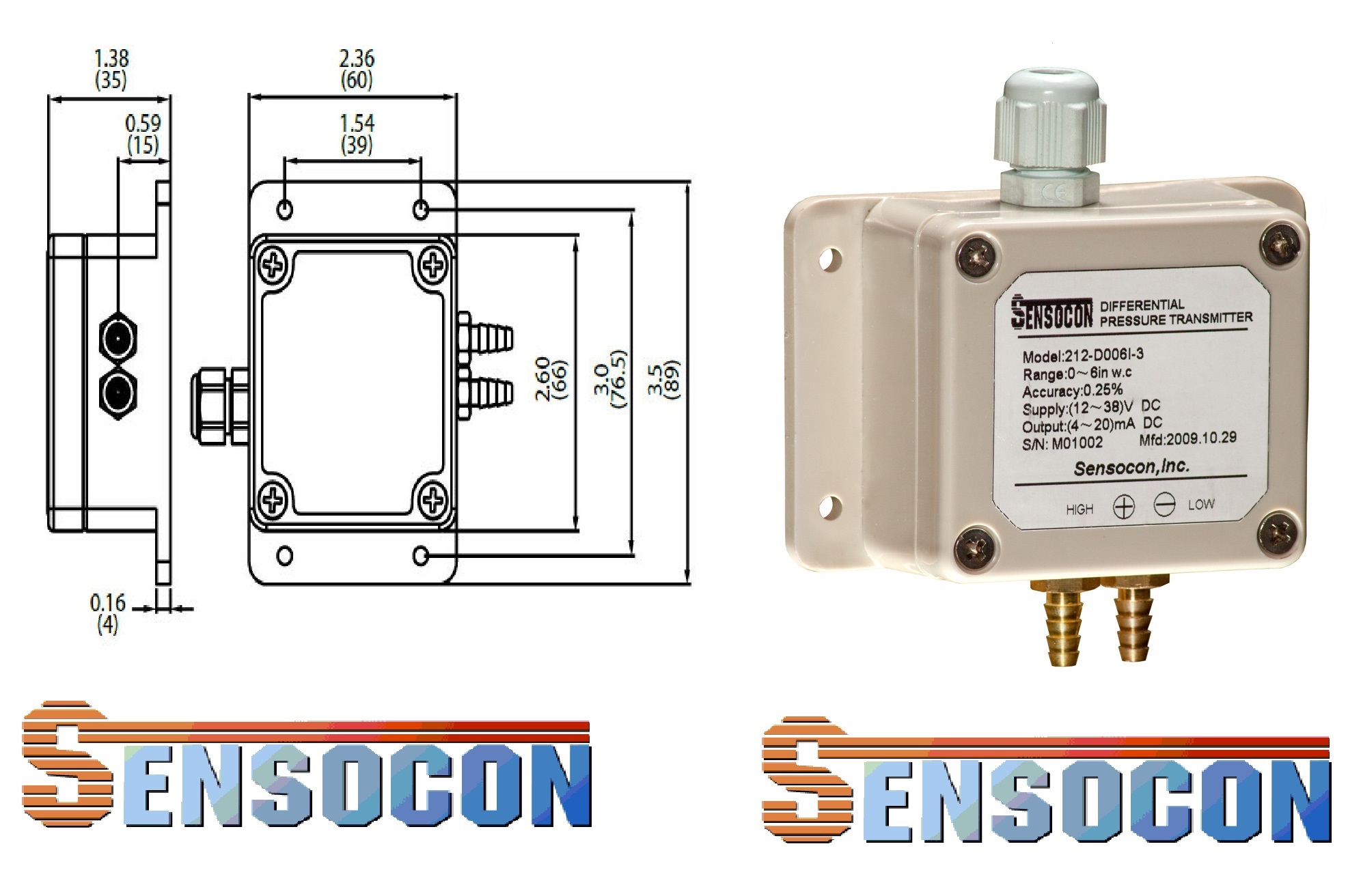

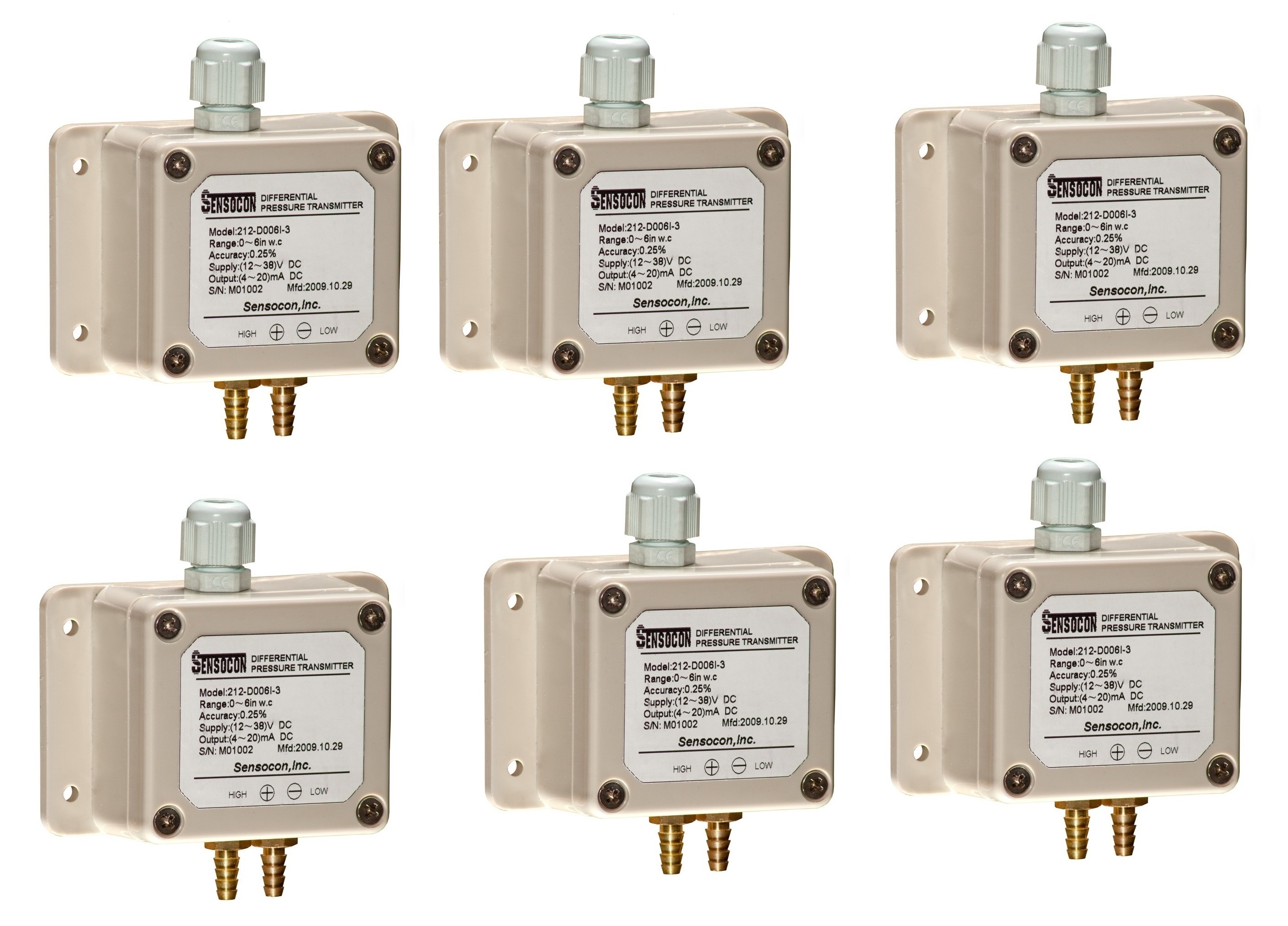

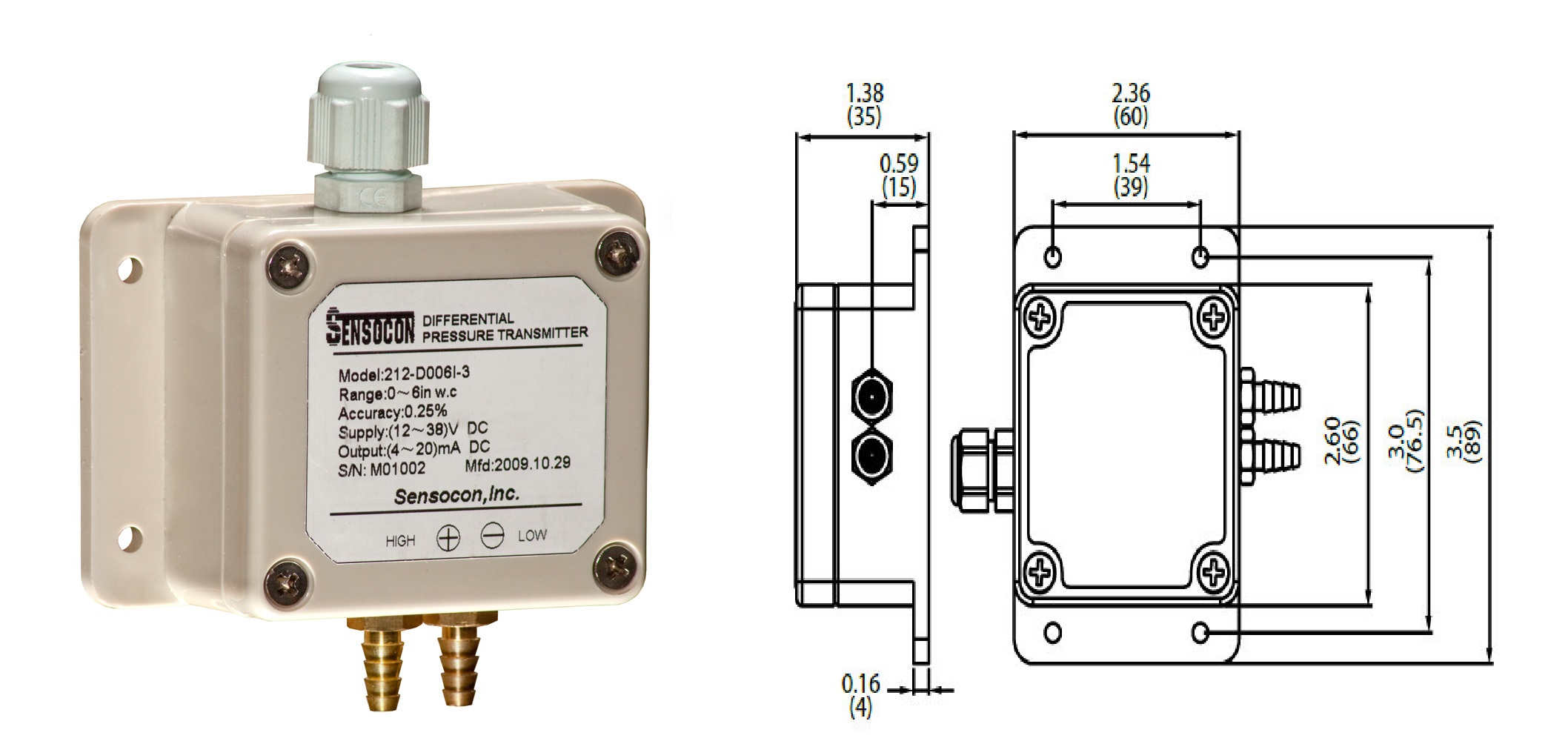

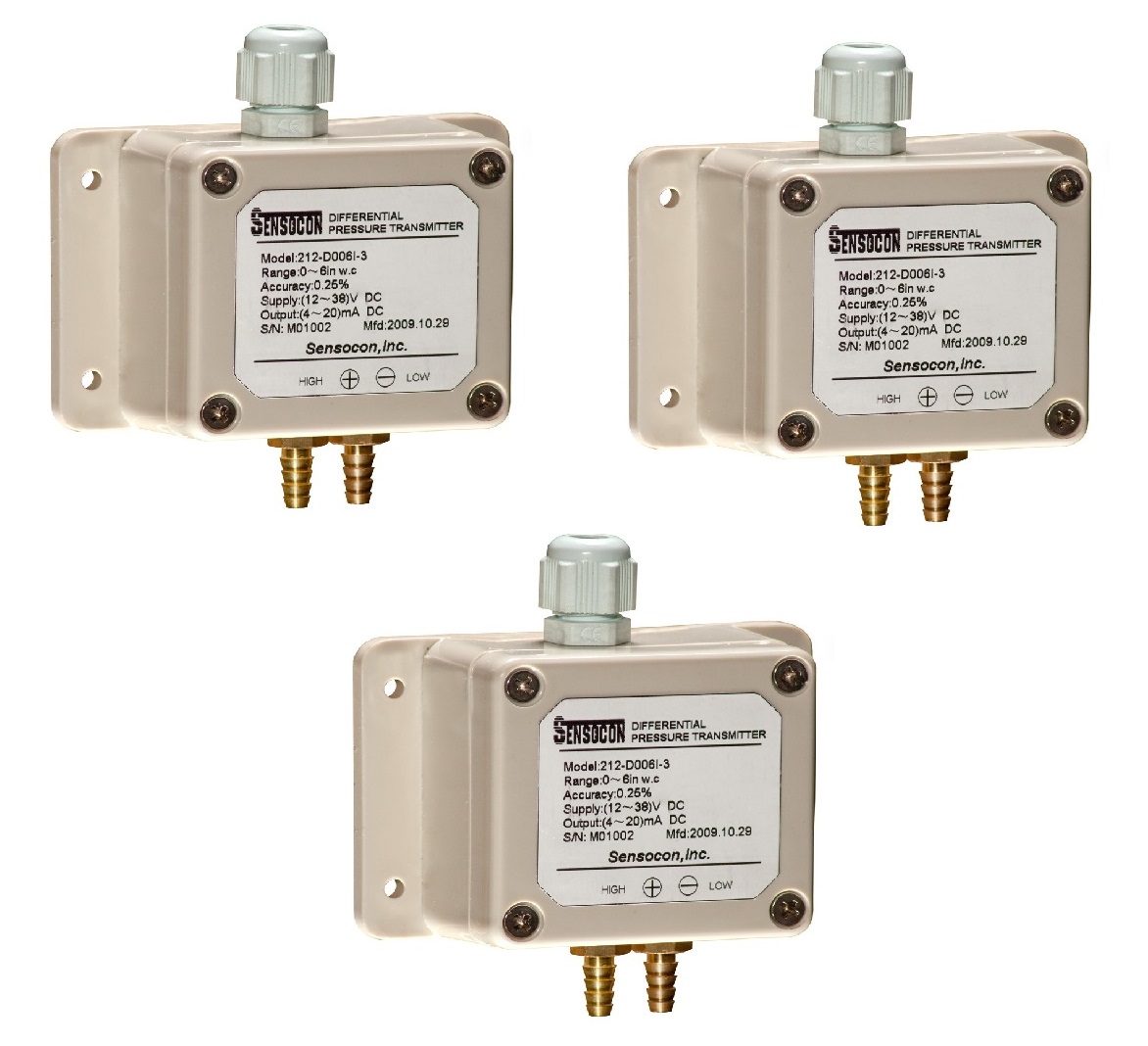

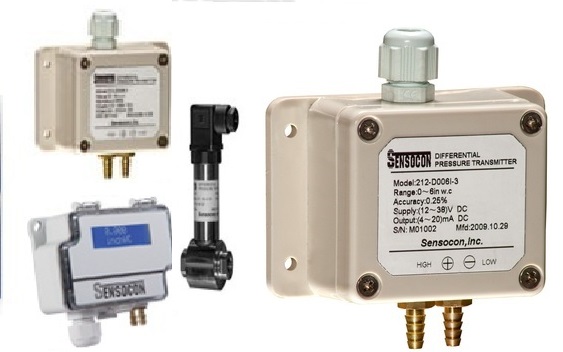

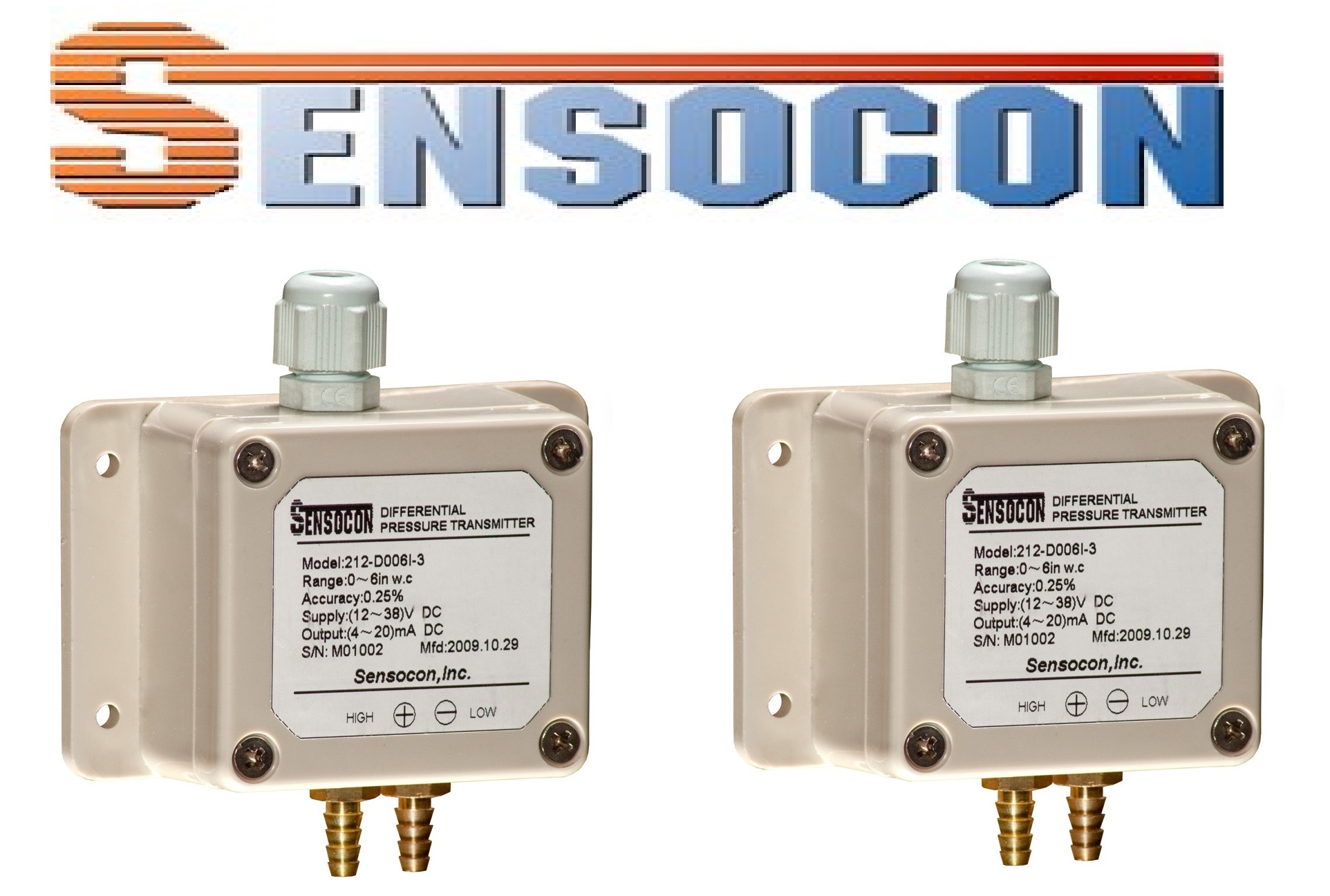

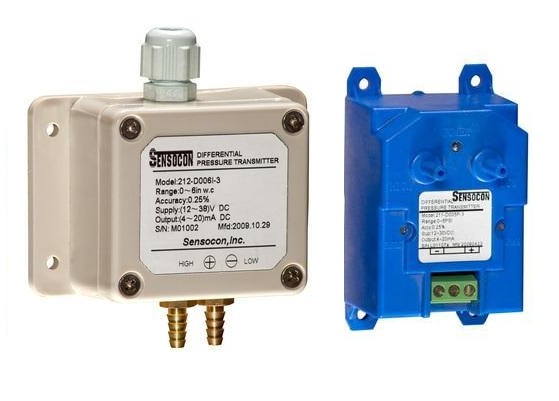

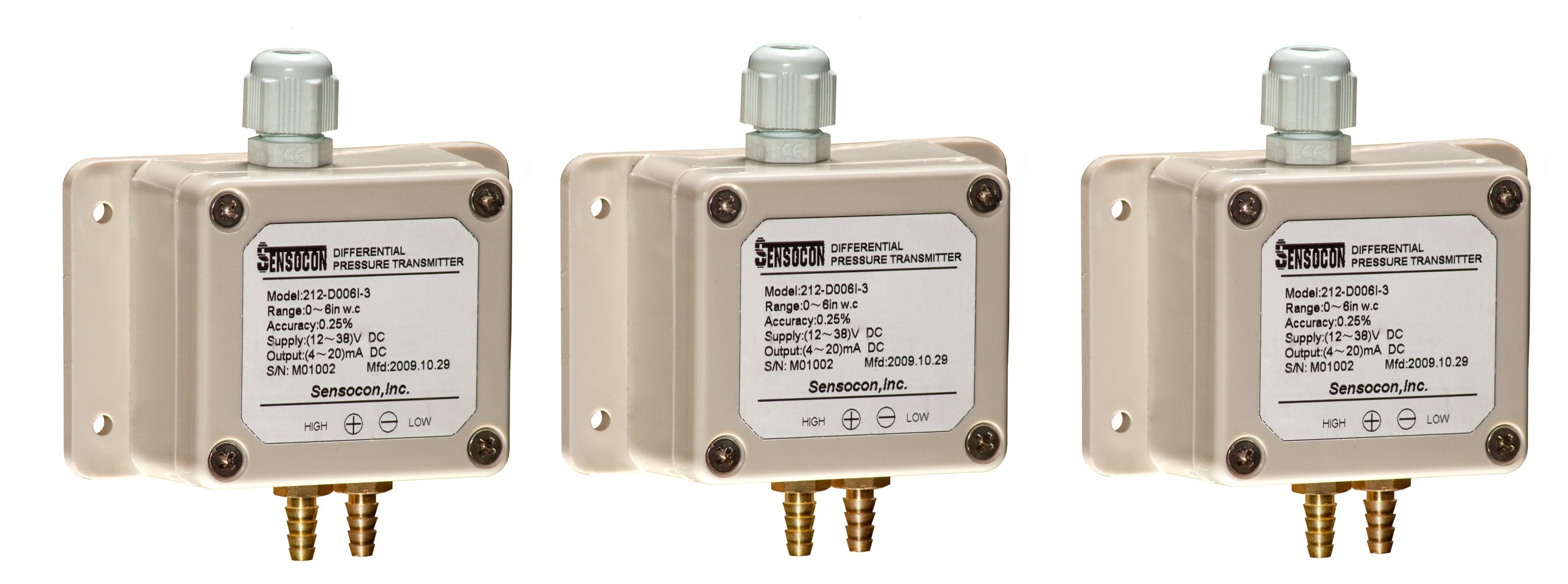

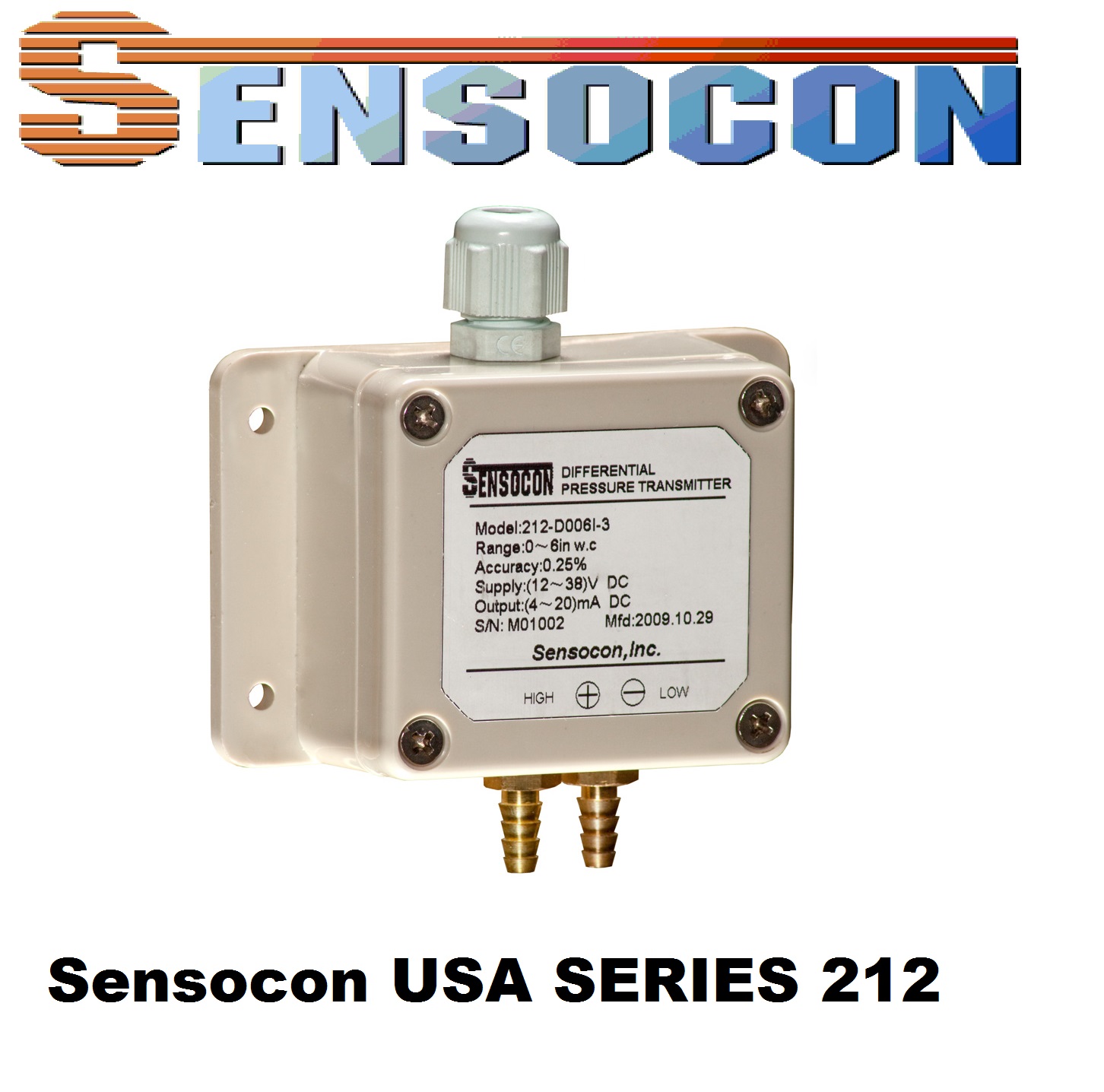

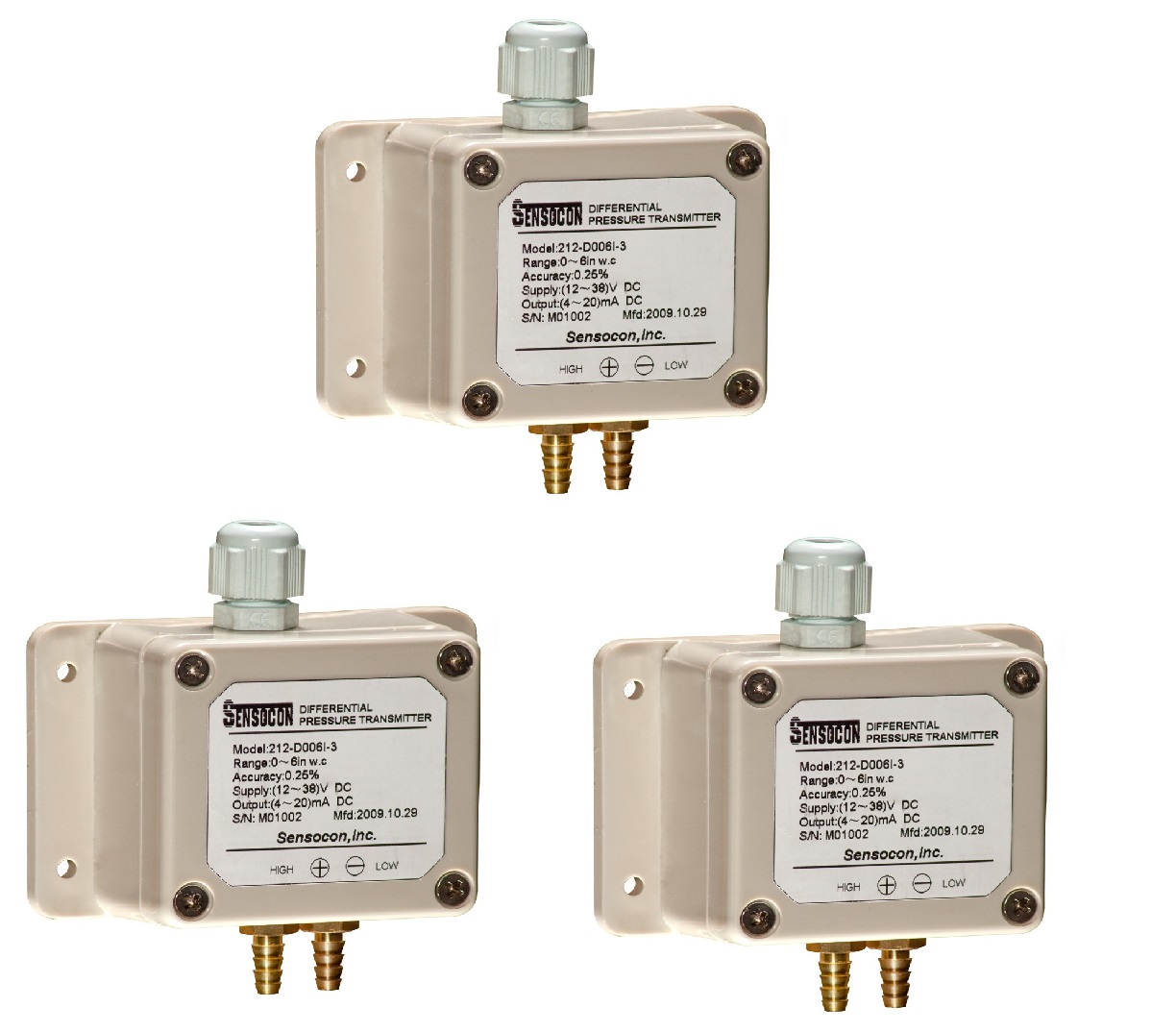

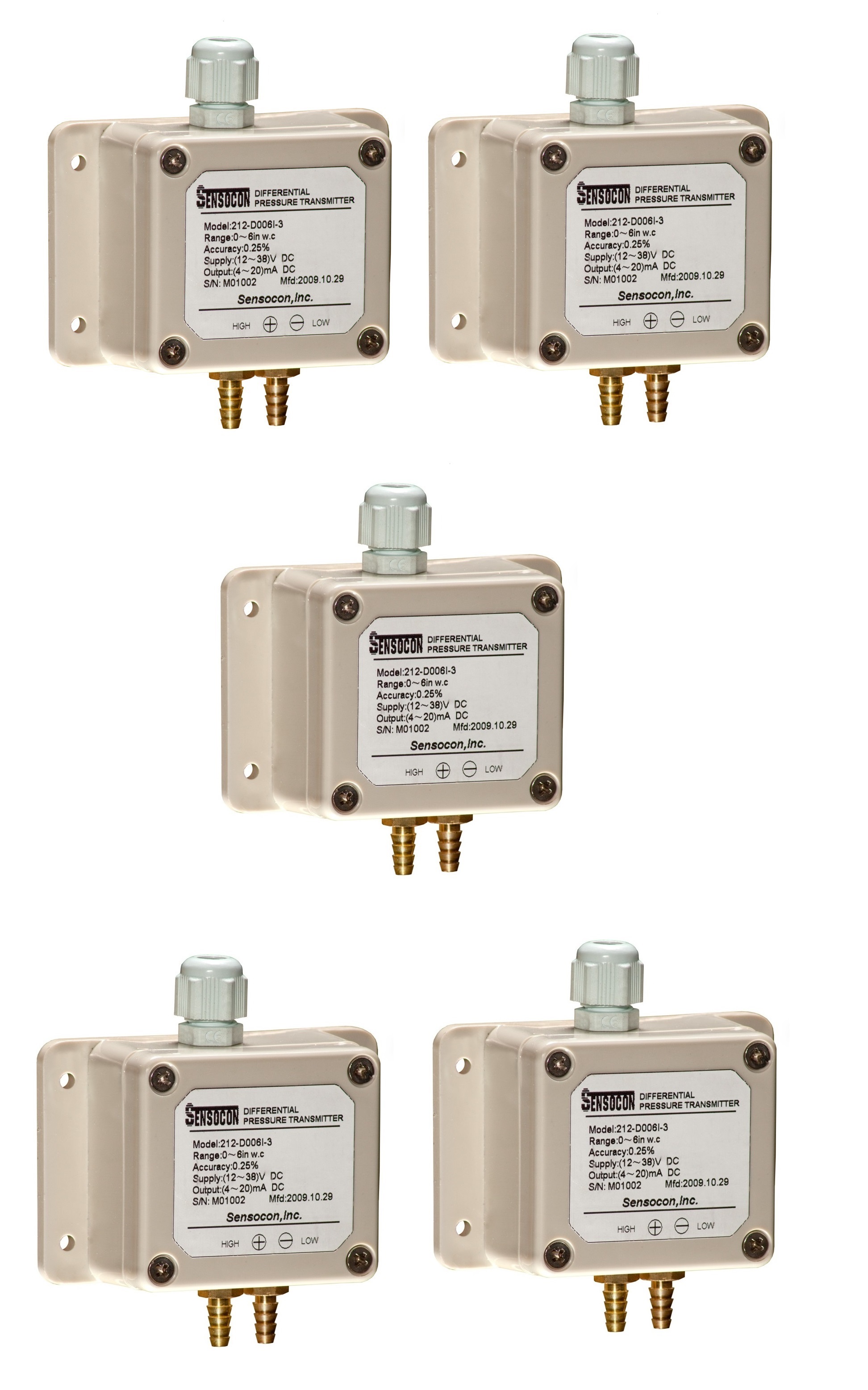

Series 212 Weather-Proof Differential Pressure Transmitter
Series 212 Weather-Proof Differential Pressure Transmitter

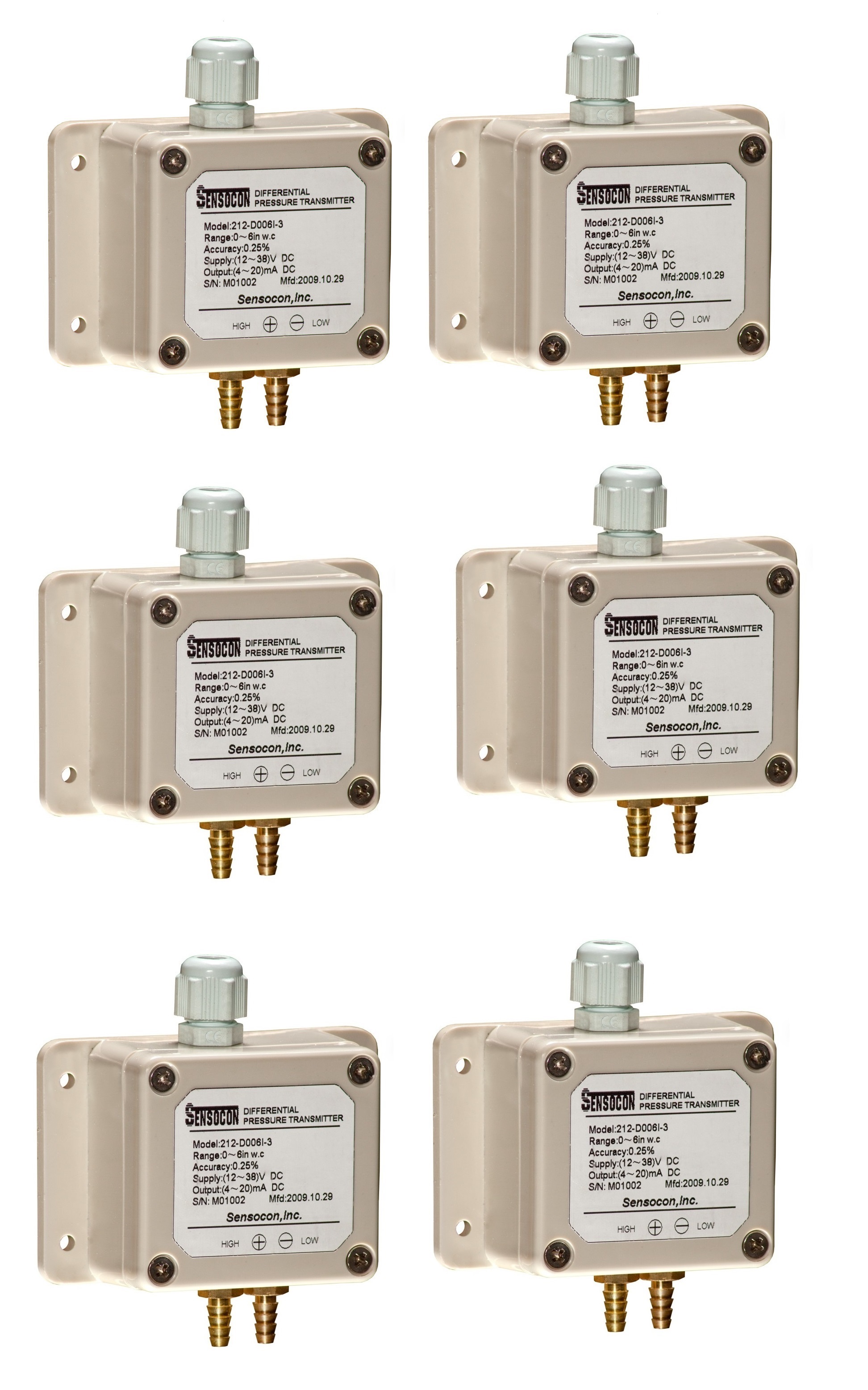

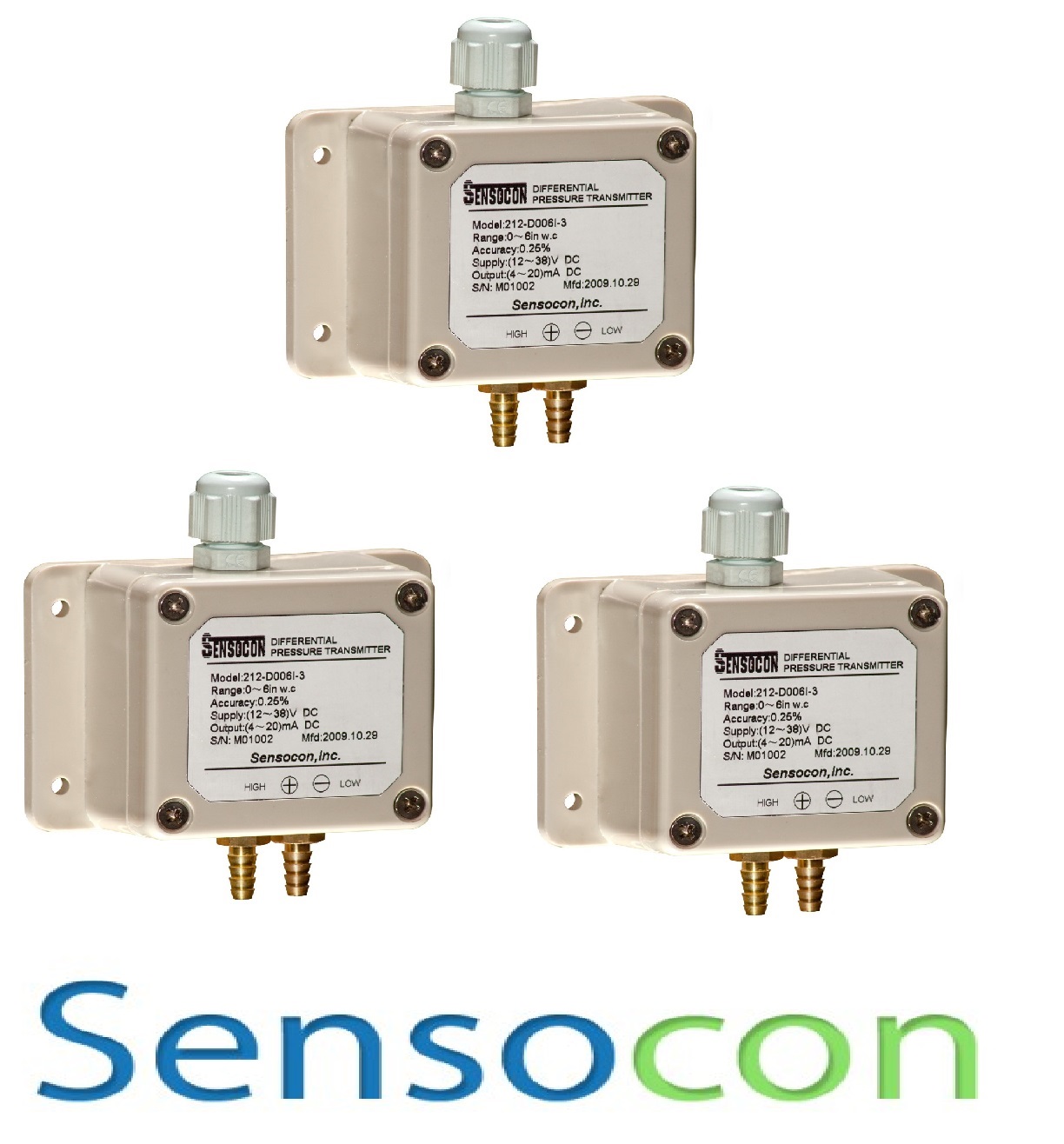

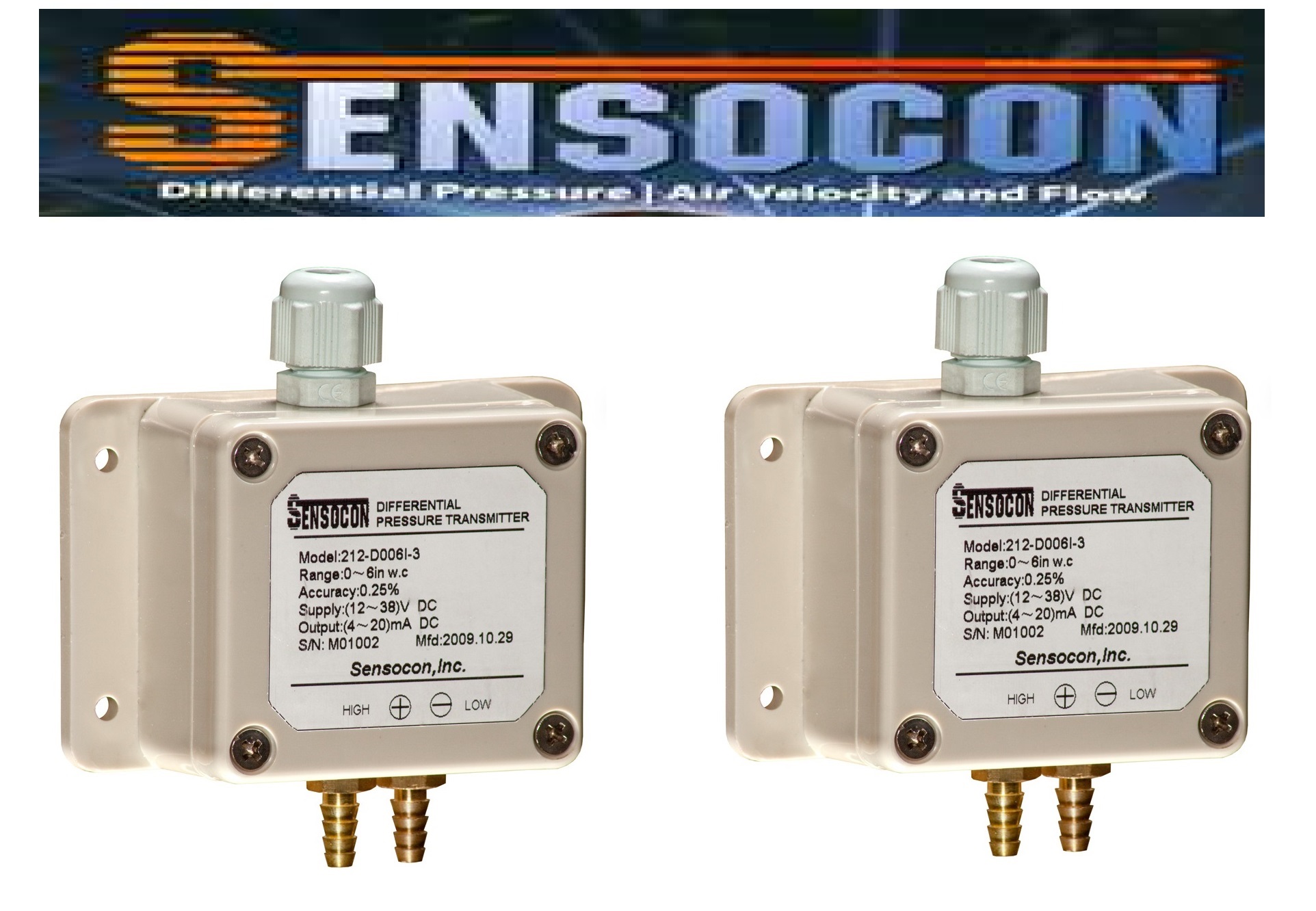

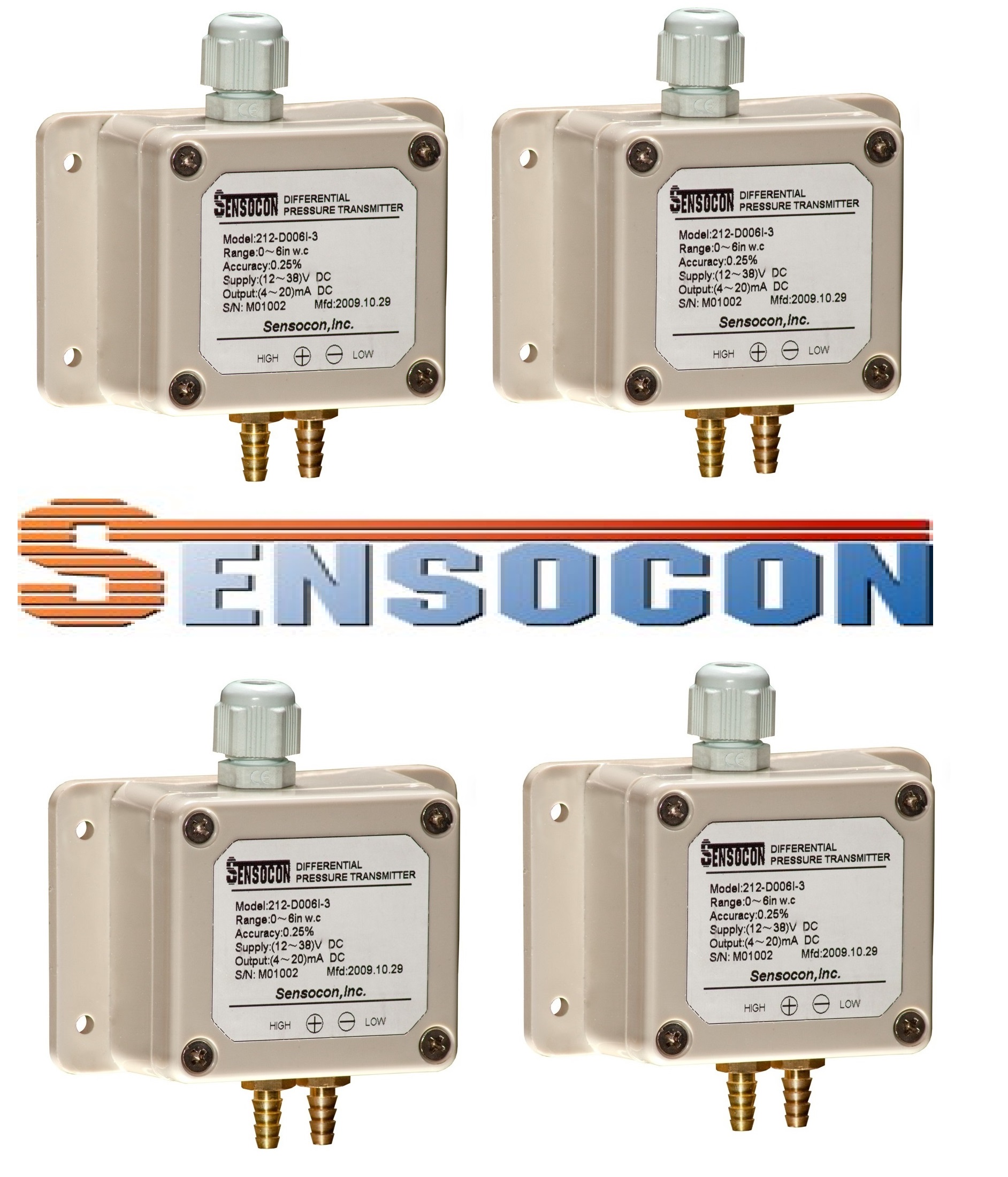

The Series 212 Weatherproof Differential Pressure Transmitter can accurately measurepositive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
Model |
Pressure Range |
Accuracy |
212-D001I-1 |
0-1" |
1% |
212-D002I-1 |
0-2" |
1% |
212-D004I-1 |
0-4" |
1% |
212-D006I-3 |
0-6" |
0.25% |
212-D010I-3 |
0-10" |
0.25% |
212-D020I-3 |
0-20" |
0.25% |
212-D040I-3 |
0-40" |
0.25% |
212-D005P-3 |
0-5 PSI |
0.25% |
212-D010P-3 |
0-10 PSI |
0.25% |
212-D015P-3 |
0-15 PSI |
0.25% |
212-D250A-1 |
0-250 Pa |
1% |
212-D500A-1 |
0-500 Pa |
1% |
212-D001K-1 |
0-1 kPa |
1% |
212-D002K-3 |
0-2 kPa |
0.25% |
212-D003K-3 |
0-3 kPa |
0.25% |
212-D005K-3 |
0-5 kPa |
0.25% |
212-D010K-3 |
0-10 kPa |
0.25% |
212-D025K-3 |
0-25 kPa |
0.25% |
212-D050K-3 |
0-50 kPa |
0.25% |
212-D100K-3 |
0-100 kPa |
0.25% |
For 0-10 V output, add -V to the end of the part number. Consult factory for other calibration ranges including zero center ranges.
Sensocon USA 212-D001I-1 Differential Pressure Transmitter
Sensocon USA 212-D001I-1 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: Screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D001K-1 Differential Pressure Transmitter
Sensocon USA 212-D001K-1 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) MaxRanges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
Sensocon USA 212-D002I-1 Differential Pressure Transmitter
Sensocon USA 212-D002I-1 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D002K-3 Differential Pressure Transmitter
Sensocon USA 212-D002K-3 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals:CE
Sensocon USA 212-D003K-3 Differential Pressure Transmitter
Sensocon USA 212-D003K-3 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) MaxRanges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D004I-1 Differential Pressure Transmitter
Sensocon USA 212-D004I-1 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals:CE
Sensocon USA 212-D005K-3 Differential Pressure Transmitter
Sensocon USA 212-D005K-3 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals:CE
Sensocon USA 212-D005P-3 Differential Pressure Transmitter
Sensocon USA 212-D005P-3 Differential Pressure Transmitter
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) MaxRanges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals:CE

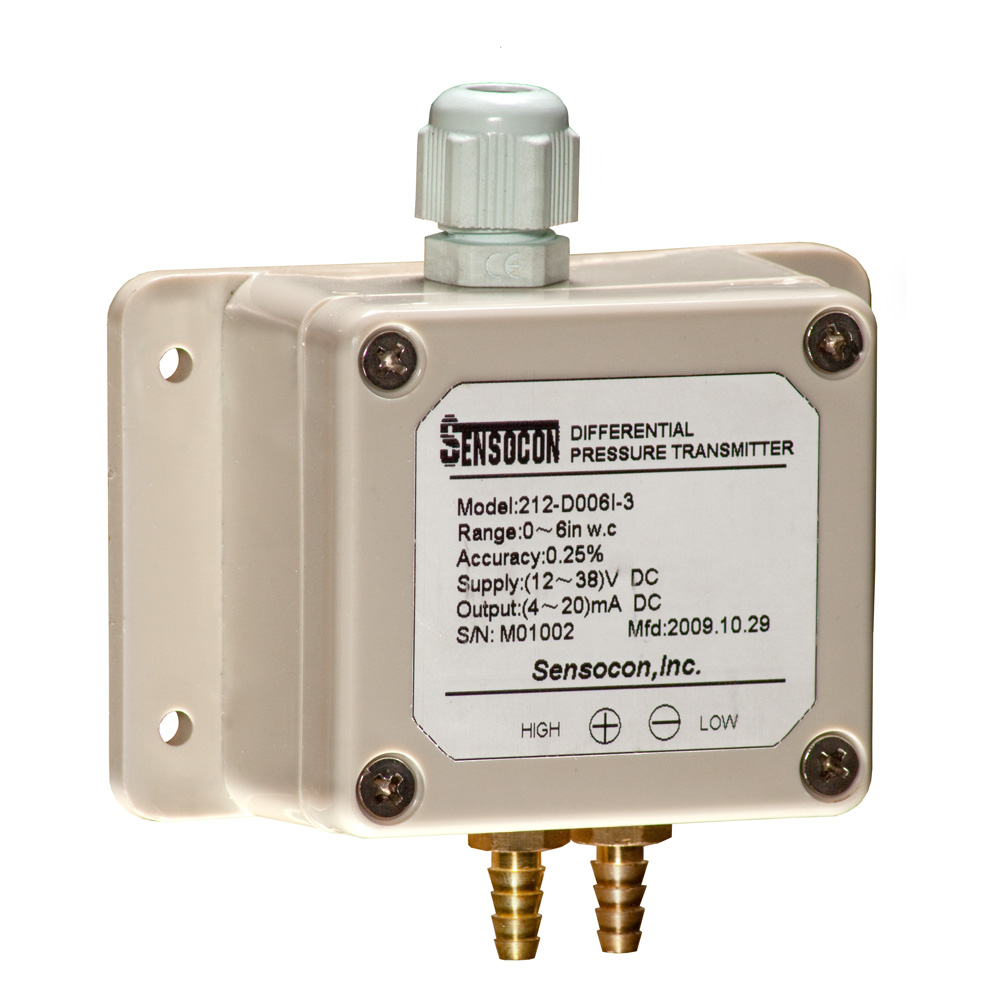

Sensocon USA 212-D006I-3 Differential Pressure Transmitter
Sensocon USA 212-D006I-3 Differential Pressure Transmitter
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D010I-3 Differential Pressure Transmitter
Sensocon USA 212-D010I-3 Differential Pressure Transmitter
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D010K-3 Differential Pressure Transmitter
Sensocon USA 212-D010K-3 Differential Pressure Transmitter
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D010P-3 Differential Pressure Transmitter
Sensocon USA 212-D010P-3 Differential Pressure Transmitter
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D015P-3 Differential Pressure Transmitter
Sensocon USA 212-D015P-3 Differential Pressure Transmitter
- Maximum Pressure: Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges ≤ 4" w.c. (1kPa) 1.0%Ranges ≥ 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16” flexible tubing
- Agency Approvals: CE
Sensocon USA 212-D020I-3 Differential Pressure Transmitter
Sensocon USA SERIES 212-D020I-3 Differential Pressure Transmitter
- Model 212-D020I-3
- Pressure Range 0-20
- Accuracy 0.25%
- Compact Design
- 0.25% Accuracy
- LED Power Indication
- 4 20 mA or 0 10 V output
The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure:Ranges : 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
- Media Compatibility:Air and compatible noncombustible, non-corrosive gasses
- Accuracy:Ranges : 4 w.c. (1 kPa) 1.0% Ranges : 5 w.c. (1.25 kPa) 0.25%
- Temperature Ranges:Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2 wire or 0-10V
- Loop Resistance: 250 - 24 VDC
- Power Supply: 12-30 VDC
- Housing Material: ABS Plastic
- Electrical Connections: screw terminals
- Process Connection: Push on connection for 3/16 I.D. tubing
- Agency Approvals: CE
Sensocon USA 212-D040I-3 Differential Pressure Transmitter
Sensocon USA SERIES 212-D040I-3 Differential Pressure Transmitter
- Model - 212-D040I-3
- Pressure Range - 0-40
- Accuracy - 0.25%
- Compact Design
- 0.25% Accuracy
- LED Power Indication
- 4 - 20 mA or 0 - 10 V output
The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 - 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure:Ranges ‰¤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
- Media Compatibility:Air and compatible noncombustible, non-corrosive gasses
- Accuracy:Ranges : 4 w.c. (1 kPa) 1.0% Ranges : 5 w.c. (1.25 kPa) 0.25%
- Temperature Ranges:Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2 wire or 0-10V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Housing Material: ABS Plastic
- Electrical Connections: screw terminals
- Process Connection: Push on connection for 3/16 I.D. tubing
- Agency Approvals: CE
Sensocon USA 212-D100K-3 Differential Pressure Transmitter
Sensocon USA SERIES 212-D100K-3 Differential Pressure Transmitter
- Model – 212-D100K-3
- Pressure Range – 0-100 Kpa
- Accuracy – 0.25%
- Compact Design
- 0.25% Accuracy
- LED Power Indication
- 4 – 20 mA or 0 – 10 V output
The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure:
- Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
- Media Compatibility:
- Air and compatible non combustible, non-corrosive gasses
- Accuracy:
- Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
- Temperature Ranges:
- Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2 wire or 0-10V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Housing Material: ABS Plastic
- Electrical Connections: screw terminals
- Process Connection: Push on connection for 3/16″ I.D. tubing
- Agency Approvals: CE
Sensocon USA 212-D020I-3 Differential Pressure Transmitter
Sensocon USA 212-D020I-3 Differential Pressure Transmitter
- Maximum Pressure: Ranges : 5 PSI (35 kPa) = 15 PSI (100kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
- Media compatibility: Air and compatible non-combustible, non-corrosive gases
- Accuracy: Ranges : 4" w.c. (1kPa) 1.0% Ranges : 5" w.c. (1.25kPa) 0.25%
- Temperature Ranges: Compensated: 15° to 120°F (-10° to 50°C)Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect: +/- 0.028% FS/°F (+/- 0.50% FS/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2-wire or 0 - 10 V
- Loop Resistance: 250-24 VDC
- Power Supply: 12-30 VDC
- Enclosure Rating: IP 65
- Electrical Connections: screw terminals
- Electrical Entry: PG7 Cable Gland
- Process Connection: Barbed fittings for 3/16 flexible tubing
- Agency Approvals: CE
Sensocon USA SERIES 212-D250A-1 Differential Pressure Transmitter
Sensocon USA SERIES 212-D250A-1 Differential Pressure Transmitter
Model – 212-250A-1
Pressure Range – 0-250 PA
Accuracy – 1%
• Compact Design
• 0.25% Accuracy
• LED Power Indication
• 4 – 20 mA or 0 – 10 V output
The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure:
- Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
- Media Compatibility:
- Air and compatible non combustible, non-corrosive gasses
- Accuracy:
- Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
- Temperature Ranges:
- Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2 wire or 0-10V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Housing Material: ABS Plastic
- Electrical Connections: screw terminals
- Process Connection: Push on connection for 3/16″ I.D. tubing
- Agency Approvals: CE
Sensocon USA 211-D500A-1 Differential Pressure Transmitter
Sensocon USA SERIES 212-D500A-1 Differential Pressure Transmitter
- Model – 212-500A-1
- Pressure Range – 0-500 PA
- Accuracy – 1%
- Compact Design
- 0.25% Accuracy
- LED Power Indication
- 4 – 20 mA or 0 – 10 V output
The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure:
- Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
- Media Compatibility:
- Air and compatible noncombustible, non-corrosive gasses
- Accuracy:
- Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
- Temperature Ranges:
- Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2 wire or 0-10V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Housing Material: ABS Plastic
- Electrical Connections: screw terminals
- Process Connection: Push on connection for 3/16″ I.D. tubing
- Agency Approvals: CE
Sensocon USA 212-D025K-3 Differential Pressure Transmitter
Sensocon USA SERIES 212-D025K-3 Differential Pressure Transmitter
- Model – 212-D0025K-3
- Pressure Range – 0-25 Kpa
- Accuracy – 0.25%
- Compact Design
- 0.25% Accuracy
- LED Power Indication
- 4 – 20 mA or 0 – 10 V output
The Series 211 Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send the corresponding 4 – 20 mA output signal. The Series 211 Differential Pressure Transmitter is not position sensitive and can be mounted in any orientation without compromising accuracy. It also features a power LED, so you always know when the transmitter is operating. The compact, lightweight design makes installation simple and easy.
SPECIFICATIONS
- Maximum Pressure:
- Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
- Media Compatibility:
- Air and compatible non combustible, non-corrosive gasses
- Accuracy:
- Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
- Temperature Ranges:
- Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2 wire or 0-10V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Housing Material: ABS Plastic
- Electrical Connections: screw terminals
- Process Connection: Push on connection for 3/16″ I.D. tubing
- Agency Approvals: CE
Sensocon USA 212-D050K-3 Differential Pressure Transmitter
Sensocon USA 212-D050K-3 Differential Pressure Transmitter
- Model – 212-D050K-3
- Pressure Range – 50K-3
- Accuracy – 1%
- Compact Design
- 0.25% Accuracy
- LED Power Indication
- 4 – 20 mA or 0 – 10 V output
SPECIFICATIONS
- Maximum Pressure:
- Ranges ≤ 5 PSI (35 kPa) = 15 PSI (100 kPa) Max Ranges > 5 PSI (35 kPa) = 30 PSI (200 kPa) Max
- Media Compatibility:
- Air and compatible noncombustible, non-corrosive gasses
- Accuracy:
- Ranges ≤ 4″ w.c. (1 kPa) 1.0% Ranges ≥ 5″ w.c. (1.25 kPa) 0.25%
- Temperature Ranges:
- Compensated: 15° to 120°F (-10° to 50°C) Operating: -10° to 155°F (-25° to 70°C)
- Thermal Effect:+/- 0.028% FS/°F (+/- 0.050%/°C)
- Stability: +/- 0.25% FS/year
- Output Signal: 4-20 mA, 2 wire or 0-10V
- Loop Resistance: 250 Ω @ 24 VDC
- Power Supply: 12-30 VDC
- Housing Material: ABS Plastic
- Electrical Connections: screw terminals
- Process Connection: Push on connection for 3/16″ I.D. tubing
- Agency Approvals: CE
