OMICRON Differential Pressure Gauge USA Wholesale

Omicron Differential Pressure Switch DP930
Model  : DP930
Media  : Air / Gases
 Enclosure  : ABS
 Wetted Parts  : Silicone
 Range  : 0 to 4kPa
 Accuracy  : ±2% of F.S
 Electrical Rating  : 2A, 250V AC



Special Features :



 High Quality, Low-Cost
 Visual Set Point Indication
 Hassle-Free Field Adjustment Knob
 2% Repeatability



 Description :

 The DP930 Differential Pressure Switch is a low-cost easy to use switch <br />for very low pressure applications. The switch can monitor positive, <br />negative, or differential pressure and with an easy to adjust set point <br />knob makes field set up and adjustment hassle free. The differential <br />pressure switch includes a SPDT relay rated for 1A @ 250V and can be set as low as 0.08” w.c. (20 Pa)



 Specifications :



 Media  : Air and compatible gases
 Max Pressure  : 40” w.c. (10KPa)
 Temperature Limits  : 5 to 140° F (-15 to 60° C)
 Electrical Rating  : 2A @ 250 V
 Electrical Connectio  : Screw terminals
 Process Connection  : 3/16” I.D. flexible tubing
 Enclosure Rating  : NEMA 13 (IP 54)
 Weight  : 3.5 oz (100 g)
 Accessories  : 6 ft (1.8m) flexible tubing (2) Static pressure
  fittings Z type mounting bracket Mounting screws
 Repeatability  : 2%
 Deadband  : approximately 10% of max set point

 Additional Information:

  • Minimum Order Quantity: 1976 Number
  • Pay Mode Terms: T/T (Bank Transfer)
Omicron DIGITAL MANMETER KELLER LEO2
 Model   : LEO2
 Temperature  : 0 to 50°C
 Range : -1 to 700 bar
 Battery Life  : 1000 hours
 Accuracy  : ± 0.1% of F.S
 Output  : NIL



 Description :

 LEO 2 is a compact, micro-processor (ìP) controlled, highly accurate and versatile pressure measuring instrument with digital indication. The piezoresistive pressure transducer as the heart of the instrument has gone through extensive pressure- and temperature tests. Its characteristics arestored in the instruments internal EEPROM. The ìP of the LEO 2 reads the characteristic values and calculates therefrom the pressure to an accuracy of < 0,1 %FS at room temperature.


The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.- pressure since the last RESET.

LEO 2 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the Max.- and Min.-value.

 Specifications :



 Pressure Range  : -1…3 bar
 Resolution  : 1 mbar
 Overpressure  : 10 bar
 Number of Digits  : 5 Digit
 Accuracy RT (room temperature) *  : < 0,1 %FS
 Total Error Band (0…50 °C) *  : < 0,2 %FS
 Storage- / Operating Temperature  : -20…70 °C / 0…50 °C
 Compensated Temperature Range  : 0…50 °C
 Supply  : 3 V battery, type CR 2430
 Battery Life  : 1’000 hours continuous operation
 Pressure Connection  : 7/16”-20 UNF (adapter G 1/4” included)
 Protection, CEI 529  : IP 65
 Diameter x Height x Depth  : 59 x 95 x 32 mm
 Weight  : 125 g

 Additional Information:

  • Minimum Order Quantity: 3091976 Number
  • Pay Mode Terms: T/T (Bank Transfer)
OMICRON Differential Pressure Gauge USA

 We are leading supplier and trader of OMICRON Differential Pressure Gauge USA. Kindly find below product details of Low Cost Galaxy Differential Pressure Gauge.<br />



Product Details:

Pressure Range Model Number Pressure Range<br />

Pa / kPa
0 – 0.25” S2000-60PA 0 – 60
0 – 0.5” S2000-125PA 0 – 125
0 – 1” S2000-250PA 0 – 250
0 – 2” S2000-500PA 0 – 500
0 – 3” S2000-750PA 0 – 750
0 – 4” S2000-1KPA 0 – 1
0 – 5” S2000-1.5KPA 0 – 1.5
0 – 6” S2000-2KPA 0 – 2
0 – 8” Zero Center
0 – 10” S2300-60PA 30 – 0 – 30
0 – 15” S2300-120PA 60 – 0 – 60
0 – 20” S2300-250PA 125 – 0 – 125
0 – 25” mm w.c.
0 – 30” S2000-6MM 0 – 6
0 – 50” S2000-10MM 0 – 10
0 – 100” S2000-25MM 0 – 25<br />

Additional Information:



  • Minimum Order Quantity: 1976 Number
  • Pay Mode Terms: T/T (Bank Transfer)<br />



OMICRON DIGITAL PRESSURE GAUGE AS313
Description & Features:





Simple 2 button operation
Reset to zero feature
Backlight turns on when on/off button is pressed
Option for display to remain continuously on
Peak pressure indication option
316L welded diaphragm seal
Rubber boot is standard
ASME B40.100 compliant
±1% accuracy (±0.5% optional for gauges up to 5,000 psi)
1 year warranty



















Applications:
Ideal for commercial and industrial application in both test measurement and general
purpose installations.
Specifications :



 Case Size  : 2.5” (63mm)
 Case Material  : ABS (IP64)
 Rubber Boot  : Silicone rubber (IP65)
 LCD Display  : 2” x 3/4” (48mm x 16mm)
 Connection  : 1/4” NPT 304SS
 Sensor  316L welded, Piezo
 Operating Life  : 1 million cycles
 Power Supply  : 2 x AAA battery (1.5V)
 Battery Life  : 2 yrs (auto shut-off mode)
 Power Mode  : Auto or manual shut-off
 Display Digits  : 4 digits to 5,000 psi
5 digits for 10,000 psi and 15,000 psi
 Resolution  : 1 digit
 Pressure Unit Selection  : psi, mHO, mmHg, mbar, kPa ranges 100 psi
psi, bar, kg/cm, MPa, atm ranges ! 160 psi
 Operation Mode  : Continuous process pressure reading or peak pressure reading
 Response Time  : 3 Hz display refresh rate
 Proof / Burst Pressure  : 200% / 300% FS
 Operating /
Storage Temperature
 : 14°F to 122°F (-10°C to 50°C)
-4°F to 167°F (-20°C to 75°C)
 Accuracy  : ±1% (±0.5% optional for gauges up to 5,000 psi)





















































Additional Information:

  • Minimum Order Quantity: 3091976 Number
  • Pay Mode Terms: T/T (Bank Transfer)







OMICRON HIGHLY PRECISE DIGITAL MANOMETER KELLER LEX1
 Model  : LEX1
 Temperature  : 0 to 50°C
 Range   : -1 to 1000 bar
 Battery Life  : 2000 Hours
 Accuracy : ± 0.01% of F.S
 Output  : RS485 Optional



 Description :

 LEX 1 is a micro-processor controlled, accurate and versatile digital pressure measuring instrument with integrated Max.-/Min.-function for calibration and testing purposes.


The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.-pressure since the last RESET.

LEX 1 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function resp. unit or serves to display the Max.- and Min.-value.

 Specifications :



 Pressure Range  : -1…2 bar
 Resolution  : 0,1 mbar
 Overpressure  : 3 bar
 Number of Digits  : 5 Digit
 Accuracy (10…30 °C) *  : 0,05 %FS
 Precision *  : 0,05 %FS
 Precision optional (≥ 20 bar) *  : 0,025 %FS / 0,01 %FS
 Storage- / Operating Temperature  -10…60 °C / 0…50 °C
 Compensated Temperature Range  : 0…50 °C
 Supply  : 3 V battery, type CR 2430
 Battery Life  : 2000 hours continuous operation
 Pressure Connection  : G1/4”
 Protection  : IP65
 Diameter x Height x Depth  : 76 x 118 x 42 mm
 Weight  : 210 g

Additional Information:

  • Minimum Order Quantity: 1976 Number
  • Pay Mode Terms: T/T (Bank Transfer)
OMICRON HIGH ACCURACY DIGITAL PRESSURE GAUGE VE100
 Model  : VE100
 Temperature  : 0 to 50°C
 Range  : -1 to 700 bar
 Battery Life  : 1000 Hours
 Accuracy  : ± 0.075% of F.S
 Output  : Optional



 Description :

 VE100 is a micro-processor controlled, accurate and versatile digital pressure measuring instrument with integrated Max.-/Min.-function for calibration and testing purposes.


The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the Max.- or Min.-pressure since the last RESET.

VE100 has three operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function resp. unit or serves to display the Max.- and Min.-value.

 Specifications :



 Pressure Range  : -1…700 bar
 Resolution  : 0,1 mbar
 Overpressure  : 2X
 Number of Digits  : 4 1/2 Digit
 Accuracy (10…30 °C) *  : 0.075 %FS
 Precision *  : 0.075 %FS
 Precision optional (≥ 20 bar) *  : 0.05 %FS / 0.01 %FS
 Storage- / Operating Temperature  -10…60 °C / 0…50 °C
 Compensated Temperature Range  : 0…50 °C
Supply  : 1.5 V battery * 5
 Battery Life  : 1000 hours continuous operation
 Pressure Connection  : G1/4”
 Protection  : IP65
 Diameter x Height x Depth  : 76 x 118 x 42 mm
 Weight  : 210 g

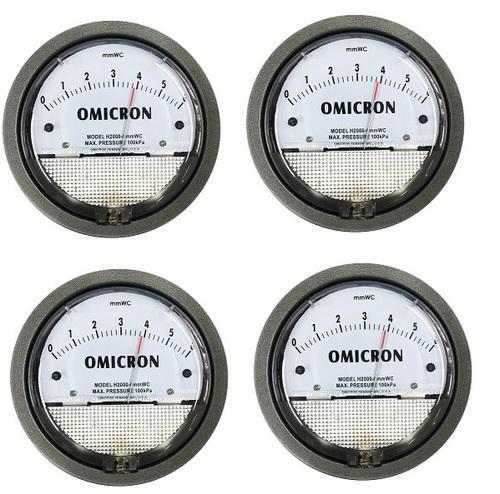

OMICRON MEGNAHELIC GAUGE

 SpecificationBrandOMICRONMODELH2300-60PaRANGE-30 TO 30 PASCALSDELIVERY TIME1-2 WEEKSDescription

Product Code :  T/P/MHG/OMI/030/001

* RANGE : -30 TO 30 PASCALS
* MODEL : H2300-60Pa

Additional Information:

  • Minimum Order Quantity: 786 Number
  • Pay Mode Terms: T/T (Bank Transfer)
OMICRON DIGITAL PRESSURE GAUGE AS312
 Model  : AS312
 Temperature   : -10 to 50°C
 Range   : 0 to 700 bar
 Battery Life  : 2000 Hours
 Accuracy : ± 0.5% of F.S
 Output : NIL



 Description :

 The AS312 series is a media isolated digital pressure gauge featuring multiple measurement units, min/max readings, selectable tare/zero and an automatic power

off to conserve battery power. Also, a backlight provides improved visibility under marginal lighting conditions.

The AS312 will operate with any liquid or gas that is compatible with 17-4PH stainless steel. Please consult the factory for other available wetted materials.

The design of this one-piece sensing element contains no silicone oil, welds or internal O-rings. The AS312 is ideal for oxygen service, hydrogen* tanks and other critical applications where fluid filled gauges cannot be used.

 Specifications :



 Display Update Rate  : 2 samples per second
 Power  : 9 Volt Alkaline Battery
 Automatic Power Off  : 1 Hour
 Battery Life  : 2000 Hours Operation (typical)
 Protection Rating  : NEMA 4, IP 65
 Instrument Case  Poly carbonate



 Performance @ 25°C (77°F) :



 Pressure Range  : A number of preset ranges are available
 Measurement Units  : PSI, BAR, kg/cm, ATM, InH20, InHg
 Accuracy  : <±0.5% BFSL (Includes Non-linearity,
  Hysteresis and Non-repeatability)
 Stability (1 year)  : ±0.25% FS (typical)
 Over Range Protection  : 2X Rated Pressure
 Burst Pressure  : 5X or 20,000 PSI whichever is less
 Pressure Cycles  : >100 Million



 Environmental Data



 Temperature
 Media  : -55 to 125°C (-67 to 257°F)
 Operating (Ambient)  : -10°C to 70°C (14°F to 158°F)
 Storage  : -10°C to 85°C (14°F to 185°F)
 Thermal Limits
 Compensated Range  : 0°C to 55°C (32°F to 131°F)
 TC Zero  : <±1.5% of FS
 TC Span  : <±1.5% of FS

 Additional Information:

  • Minimum Order Quantity: 3091976 Number
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: BY ORDER
