enviro tech industrial product

Galaxy Magnehelic Gauge Wholesale Suppliers in India

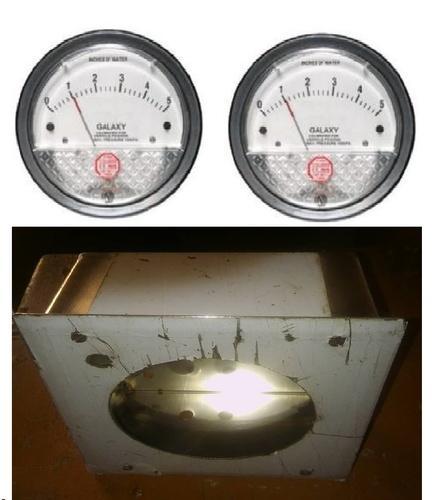

Galaxy Make Magnehelic Gauge

Our specialization lies in offering a commendable range of Galaxy Make Magnehelic Gauge Series 2000. Manufactured with utmost care and precision at our vendors end using superb quality components, our offered product is highly acclaimed in the market. After being manufactured the offered product is properly tested on defined parameters. Clients can avail the entire range from us in various Technical Specifications at industry leading prices.

  • Features:

  • Compact size
  • Accuracy
  • Easy installation



  • Specifications:

  • Application: Industrial
  • Structure: Spring Pressure Gauge
  • Connection Type: Radial Direction
  • Function: Local Indication Type
  • Indicating Pressure Reference: Differential Pressure Gauge



  • Additional Information:

  • Minimum Order Quantity: 9650264867 Cell Us
  • Pay Mode Terms: T/T (Bank Transfer)

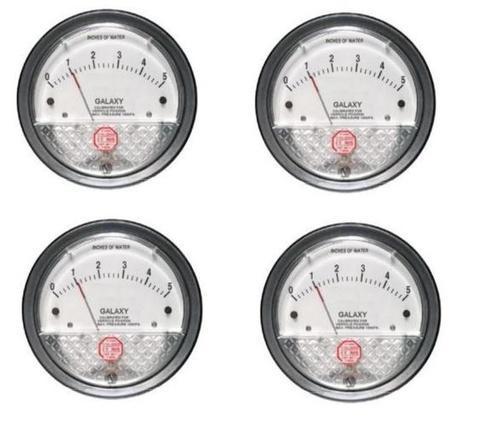

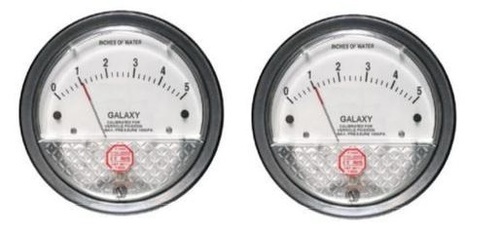

Low Cost Galaxy Differential Pressure Gauge

We are leading supplier and trader of Low Cost Galaxy Differential Pressure Gauge. Kindly find below product details of Low Cost Galaxy Differential Pressure Gauge.


Product Details:

Pressure Range Model Number Pressure Range

Pa / kPa
0 – 0.25” S2000-60PA 0 – 60
0 – 0.5” S2000-125PA 0 – 125
0 – 1” S2000-250PA 0 – 250
0 – 2” S2000-500PA 0 – 500
0 – 3” S2000-750PA 0 – 750
0 – 4” S2000-1KPA 0 – 1
0 – 5” S2000-1.5KPA 0 – 1.5
0 – 6” S2000-2KPA 0 – 2
0 – 8” Zero Center
0 – 10” S2300-60PA 30 – 0 – 30
0 – 15” S2300-120PA 60 – 0 – 60
0 – 20” S2300-250PA 125 – 0 – 125
0 – 25” mm w.c.
0 – 30” S2000-6MM 0 – 6
0 – 50” S2000-10MM 0 – 10
0 – 100” S2000-25MM 0 – 25


Additional Information:

  • Minimum Order Quantity: 9871034100 Cell Us
  • Pay Mode Terms: T/T (Bank Transfer)
Galaxy Magnehelic Gauge
Having vast experience in the relevant industry, we are engaged in providing a broad assortment of Galaxy Magnehelic Gauge that is assemble in order to meet specific demands of customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at clients end. Clients can avail the offered range from us at market leading prices within stipulated time frame.

Features:

Accuracy
High functionality
Long service life

Specifications:

We provide Galaxy magnehelic gauge of series which is low in cost, diaphragm operated and differential pressure gauge
Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%
Besides, these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, cabinet purging and many others
We offer Galaxy magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas
In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover
These have exterior finish with grey color to withstand 168 hour salt spray corrosion test

Technical Specifications:


Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges), throughout range at 70°F (21.1°C)
Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option
HP option: 35 psig (2.41 bar), 80 psig (5.52 bar)
Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)
Size: 4 (101.6 mm) Diameter dial face
Mounting Orientation: Diaphragm in vertical position, Consult factory for
Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back
Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)
Other position orientations

Applications:

Filter Status
Duct Static Pressure
Clean Room Pressure
Building Pressure
Fan and Blower Pressure
Paint Booths
Dust Collectors
Glove Box Pressure
Bubbler Systems
Cabinet Purging


Additional Information:

  • Minimum Order Quantity: 9650264867 Cell Us
  • Pay Mode Terms: T/T (Bank Transfer)
